W-101A
3通混合閥和蒸發器
準確控制氣液混合物
快速反應
高重復性
穩定的蒸汽流
3通混合閥和蒸發器

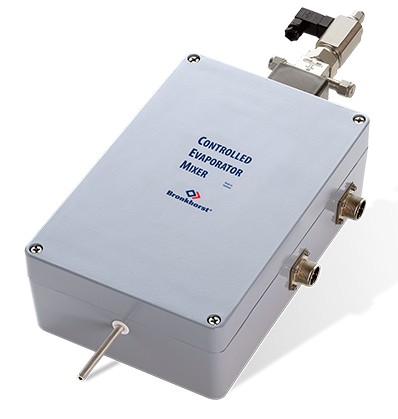

Bronkhorst?? W-101A CEM 適用于準確的蒸汽流輸送，工作壓力在真空到100 bar之間，可混合最大流量 2 g/h液體和最大流量 4 ln/min載氣。溫控混合裝置與μ-FLOW液體流量計和載氣MFC組合使用，共同構成控制蒸發和混合（CEM）系統。
技術參數
| 測量控制系統 | |
|---|---|
| Max. heating temperature | 200 °C |
| Heater capacity | 10 W |
| Max. Kv-value | 6.6 x 10-2 |
| 機械部件 | |
|---|---|
| Material (wetted parts) | Stainless steel 316L or comparable |
| Pressure rating (PN) | 100?bar a |
| Max. ΔP | 5?… 40?bar (depends on Kv-value; contact your distributor for details) |
| Process connections | Gas and liquid inlet: compression type or face seal couplings; Vapour outlet: 1/8″ tube (other options on request); Purge connection: 1/8″ OD or 1/8″ face seal |
| Seals | Metal-to-metal |
| Protection class | IP40 |
| Plunger | Kalrez?; other on request |
| Connector | Amphenol 6-pin male |
| 電氣性能 | |
|---|---|
| Power supply | Mixing valve: +15…24 Vdc +/-10%; Heater: 44 Vac |
| Max. power consumption | Mixing valve: 4 W (max.); Heater: 150 W (nominal) |
技術參數如有變更，恕不另行通知。
更多資料
| Brochures | |
|---|---|
| CEM brochure |  |
| Manuals | |
|---|---|
| Manual CEM Controlled Evaporator and Mixer | |
| Hook-up diagrams | |
|---|---|
| W101A-W102A-W202A | |
| Dimensional drawing | |
|---|---|
| Dimensional Drawing W101A | |
